TREK Madone SL 6 Gen 8
TREK Madone SL 6 Gen 8
Couldn't load pickup availability

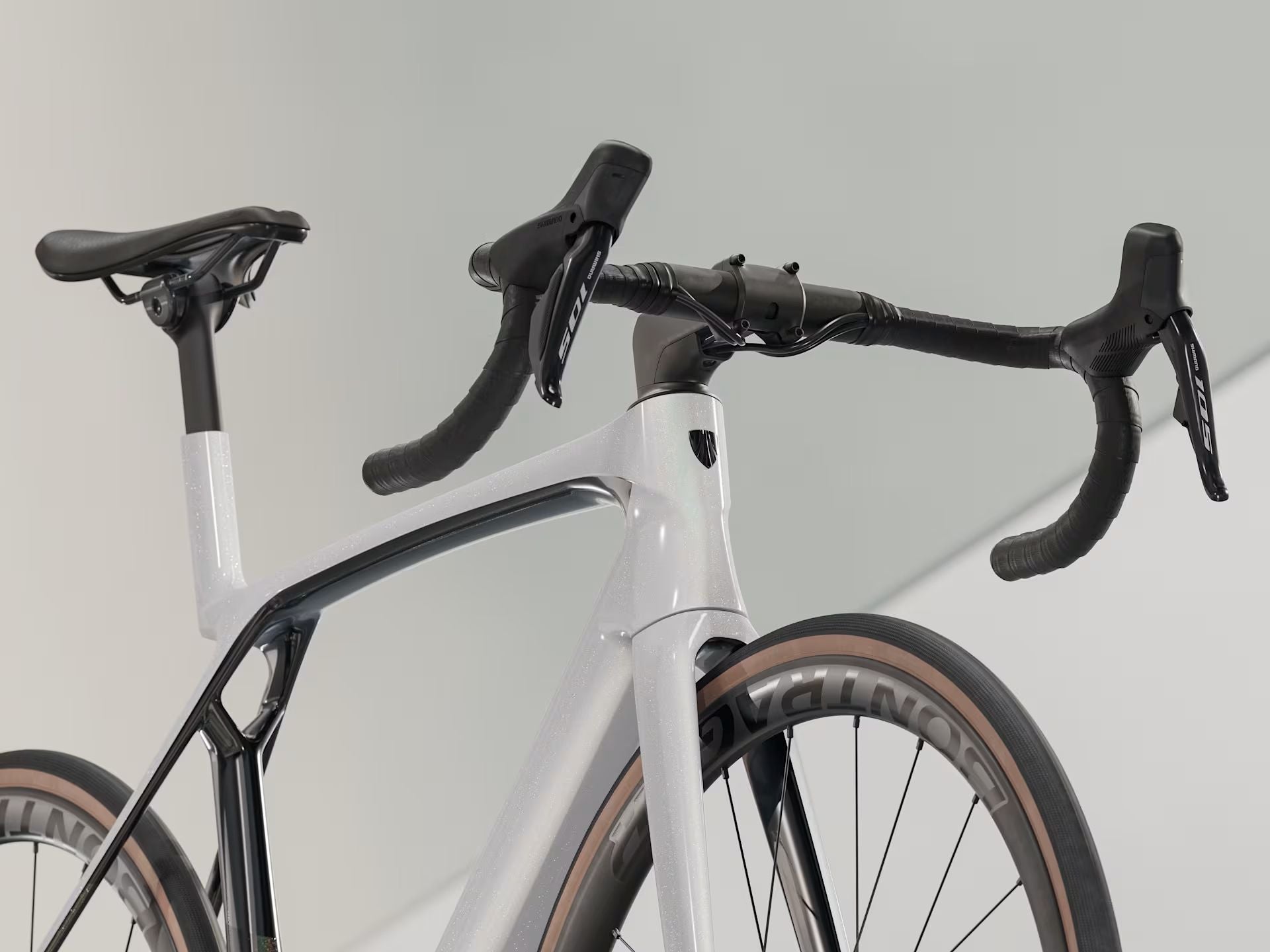

The Madone SL 6 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It's built to race with geometry that keeps you comfortable on the climbs and perched for the attack. A Shimano 105 Di2 electronic group set keeps the price down without sacrificing lightning-fast electronic shifting. Plus, it's topped off with carbon wheels for extra lightweight performance.
- Frame
-
500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
- Fork
- Weight
- ML - 8.16 kg / 17.99 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Battery
-
Shimano BT-DN300
- Charger
-
Charging cable included
- Shifter
-
Shimano 105 R7170 Di2, 12-speed
- Front derailleur
-
Shimano 105 R7150 Di2, braze-on, down swing
- Rear derailleur
-
Shimano 105 R7150 Di2, 36T max cog
- *Crank
-
Size: XS, S
Shimano 105 R7100, 50/34, 165 mm lengthSize: M
Shimano 105 R7100, 50/34, 170 mm lengthSize: ML, L
Shimano 105 R7100, 50/34, 172.5 mm lengthSize: XL
Shimano 105 R7100, 50/34, 175 mm length - Bottom bracket
- Cassette
-
Shimano 105 7101, 11-34, 12-speed
- Chain
-
Shimano SLX M7100, 12-speed
- Max. chainring size
- 1x: 54T, 2x: 56/43
- Wheel front
- Wheel rear
- Skewer front
- Skewer rear
- Tyre
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
- Max tyre size
- 32 mm (as measured, see manual for details)
- *Saddle
- *Seatpost
- *Handlebar
-
Size: XS
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop widthSize: S, M
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width - Handlebar tape
- *Stem
- Brake rotor
-
Shimano RT70, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 180 mm front, 160 mm rear
