Trek

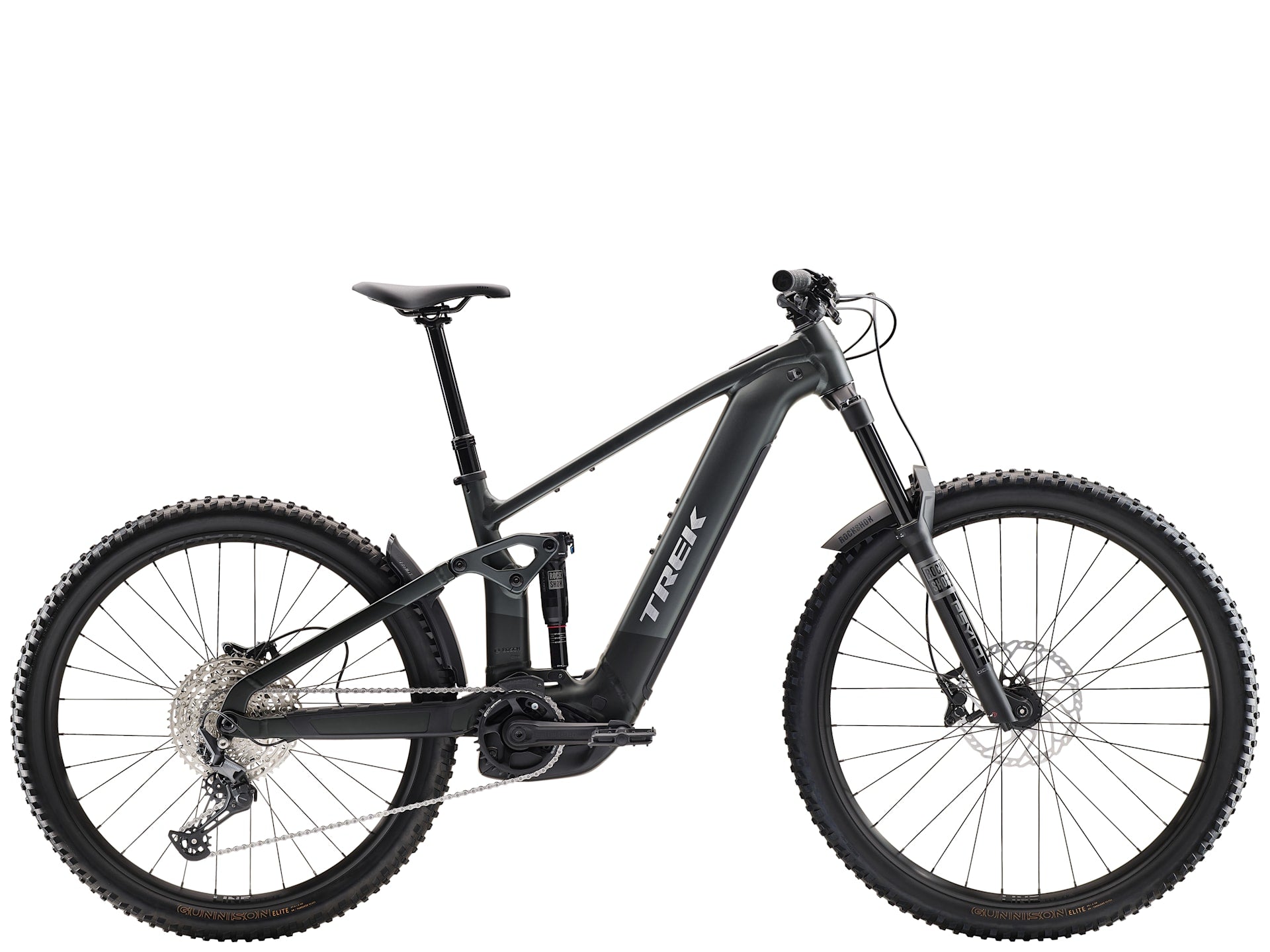

Trek Rail+ 5 Gen 5

Trek Rail+ 5 Gen 5

$7,999.99 AUD
$7,999.99 AUD
Sale Sold out
Color: Lithium Grey
Size

The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.

Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
Fork
RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
Shock
RockShox Deluxe Select+ RT, 205 mm x 65mm

Hub front
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
*Tyre
Size: S, M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
Size: S, M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
Size: M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 27.5x2.60", Fork: See manufacturer

Charger
Bosch standard 2A, 230V, smart system

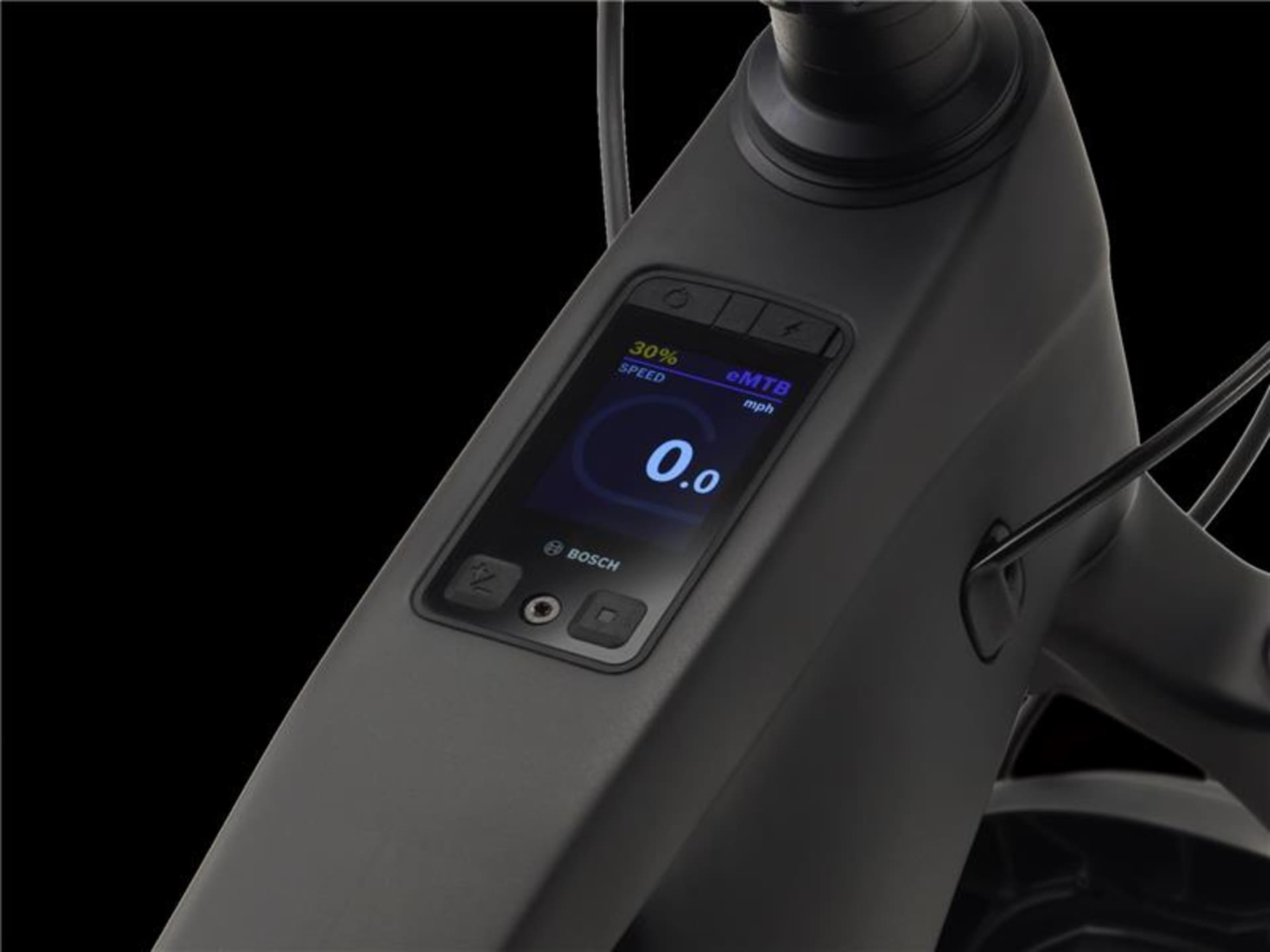

Controller
Bosch System Controller BRC3100, smart system

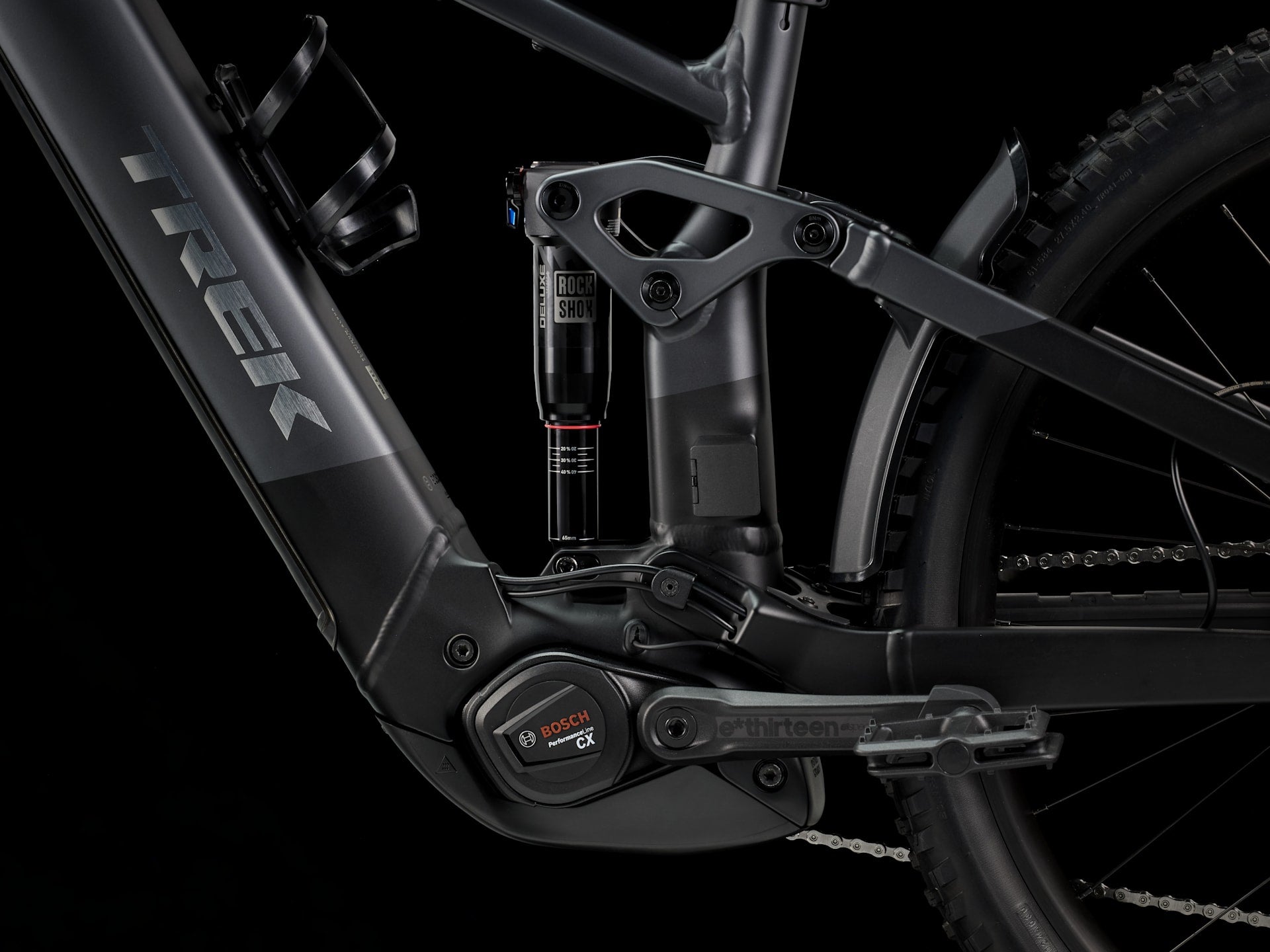

Motor
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)

Shifter
Shimano Deore M6100, 12-speed
Rear derailleur
Shimano Deore M6100, long cage
Crank arm
E*thirteen E*spec Plus, 160 mm length
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 36T

Saddle
Bontrager Verse P3, steel rails
*Seatpost
Size: S
TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm
Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
Handlebar
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Head set
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor
Shimano RT66, 6-bolt, 203 mm
Rotor size
Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer

Mudguard
Trek 27.5" custom fender

Weight
M – 25.28 kg/55.74 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
