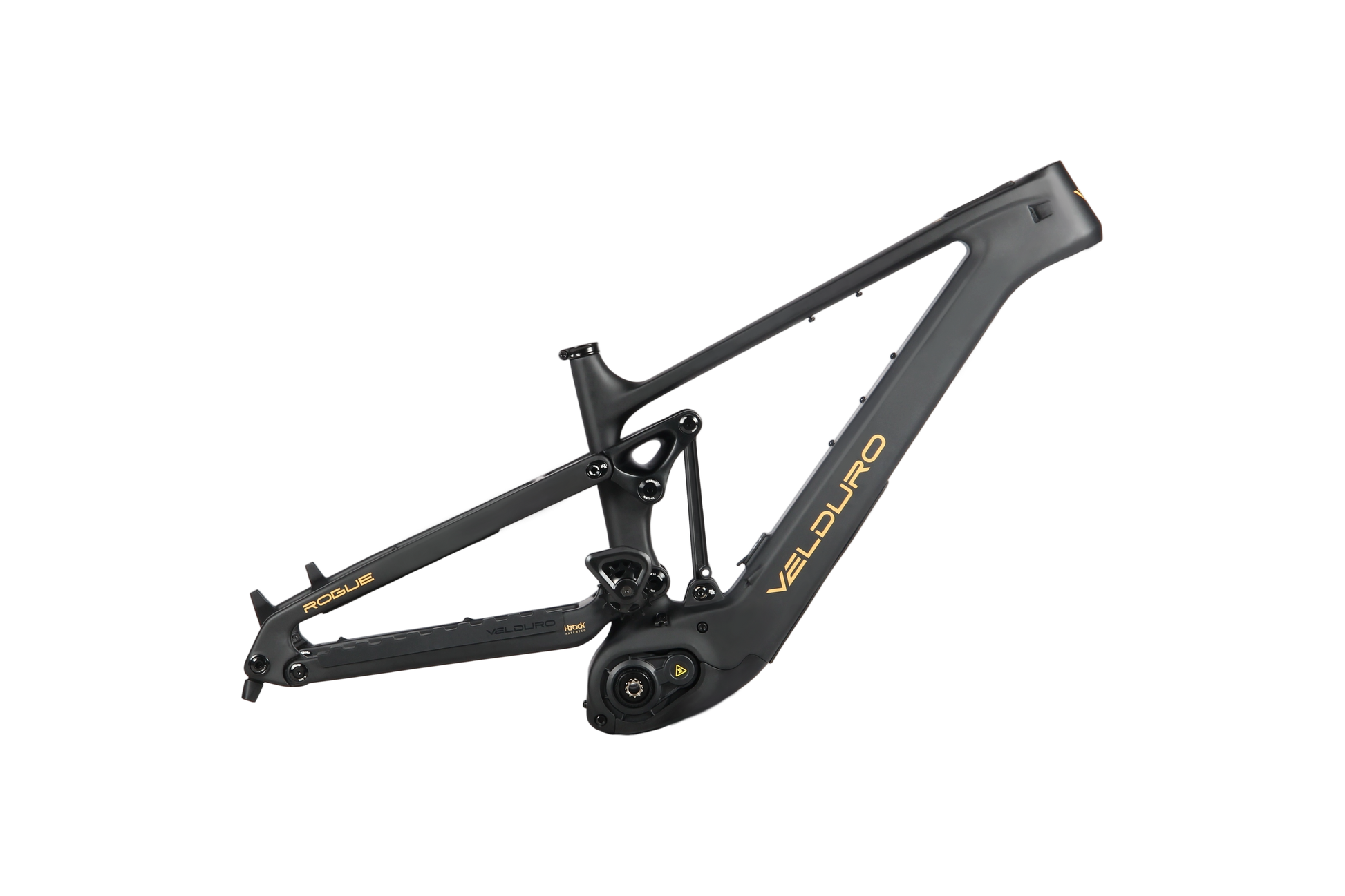

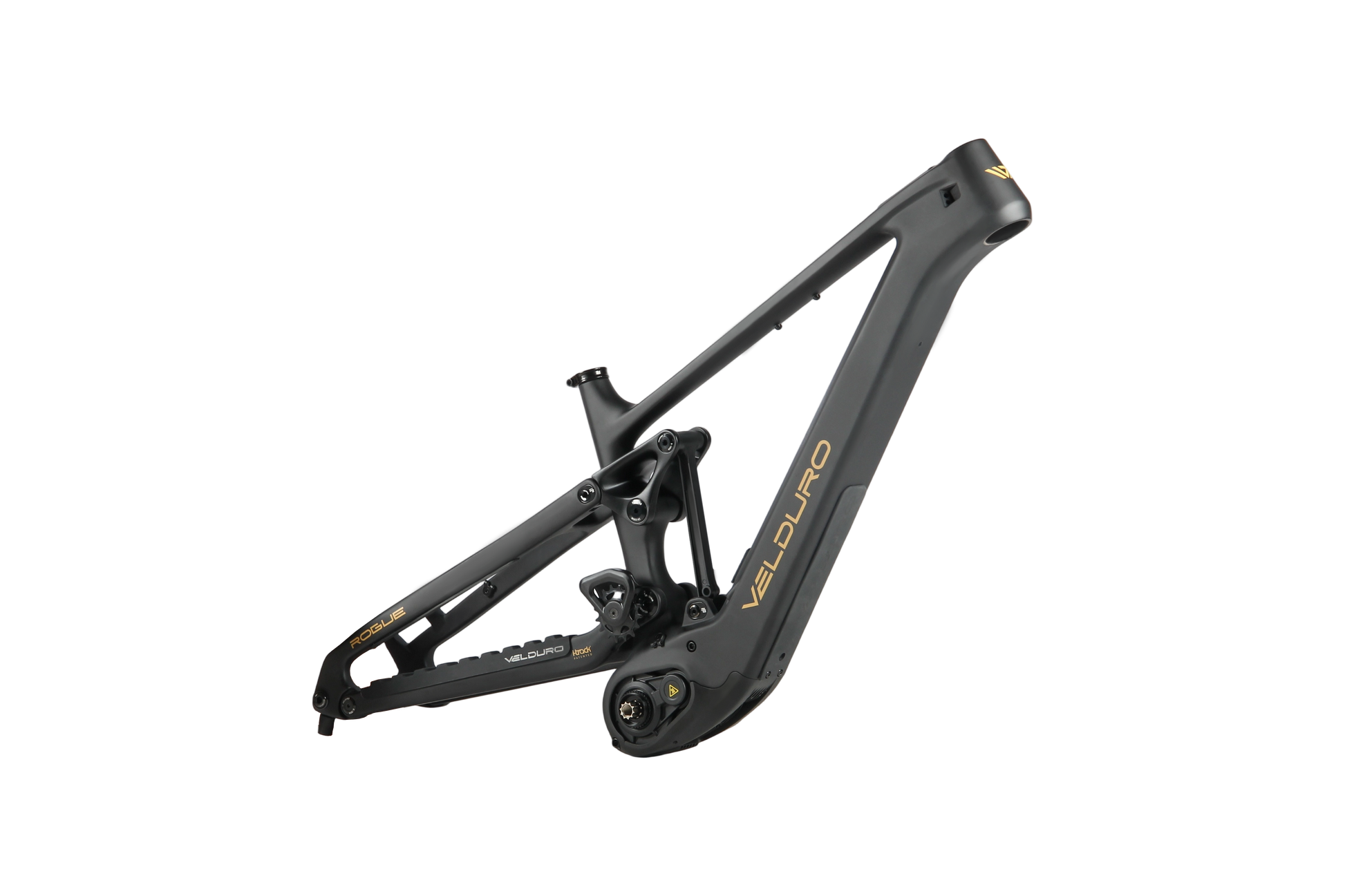

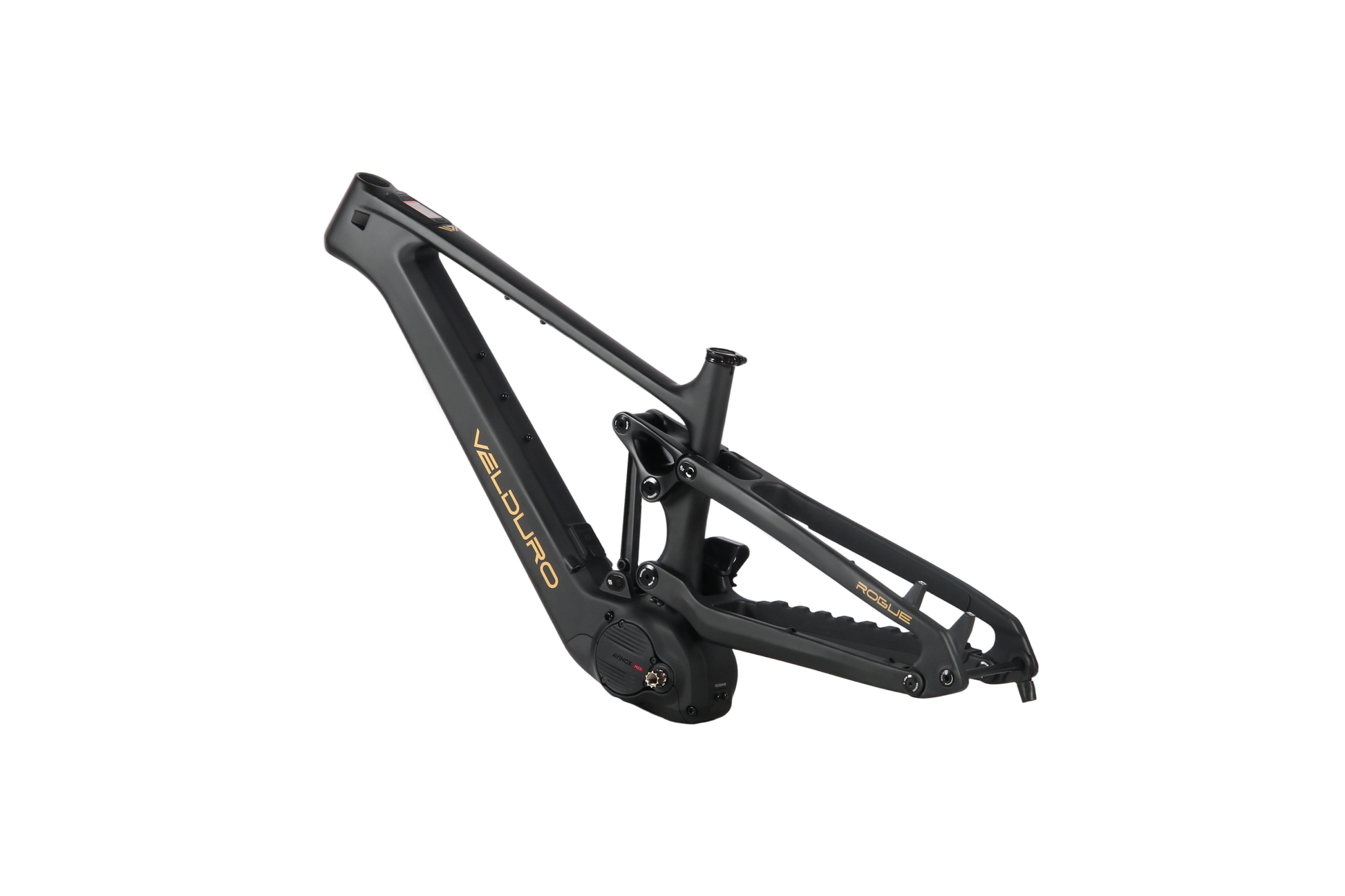

Velduro Rogue Frame

Build your ultimate eMTB from the ground up.

Choose the frame on its own and transfer components from an existing bike.

The Velduro Rogue is a full-carbon enduro frame designed for riders who want serious descending capability, powerful assistance and the freedom to create their ideal build. Its mid-pivot i-Track suspension platform delivers controlled, confidence-inspiring performance across steep, technical and high-speed terrain.

At the heart of the Rogue is the DJI Avinox drive system, producing up to 130Nm of torque, with 150Nm available in Boost mode. Combined with the integrated 800Wh battery, the Rogue delivers the power and range needed for bigger climbs, longer rides and more descending.

The adjustable frame platform can be configured with either a full 29-inch setup or a mixed-wheel configuration using the integrated flip chip. Rear travel can be adjusted up to 172mm depending on your selected shock stroke and progression setting.

Key Features

• Full carbon fibre enduro eMTB frame
• DJI Avinox M2S drive unit
• Up to 130Nm torque and 150Nm Boost mode
• Integrated DJI Avinox 800Wh battery
• DJI Avinox display and wireless controllers
• Mid-pivot i-Track suspension platform
• Adjustable rear travel up to 172mm
• Compatible with 29-inch or mixed 29/27.5-inch wheels
• Adjustable progression and geometry flip chip
• Oversized frame bearings
• UDH derailleur hanger
• Boost 12 x 148mm rear axle spacing
• Avinox 155mm cranks included
• Velduro 34T steel chainring included
• Available in Small, Medium, Large and Extra Large

Included With the Frame

The Rogue frame includes the DJI Avinox motor, 800Wh battery, display, wireless controllers, charger, cranks, chainring, headset, rear axle, UDH, seatpost clamp, cable hardware and required frame mounting hardware.

Frames purchased without a shock require shock-specific 30 x 8mm lower eyelet mounting hardware.

Please note: Before using this bike, check the laws and regulations that apply to e-bikes on roads, trails and road-related areas in your state or territory.
