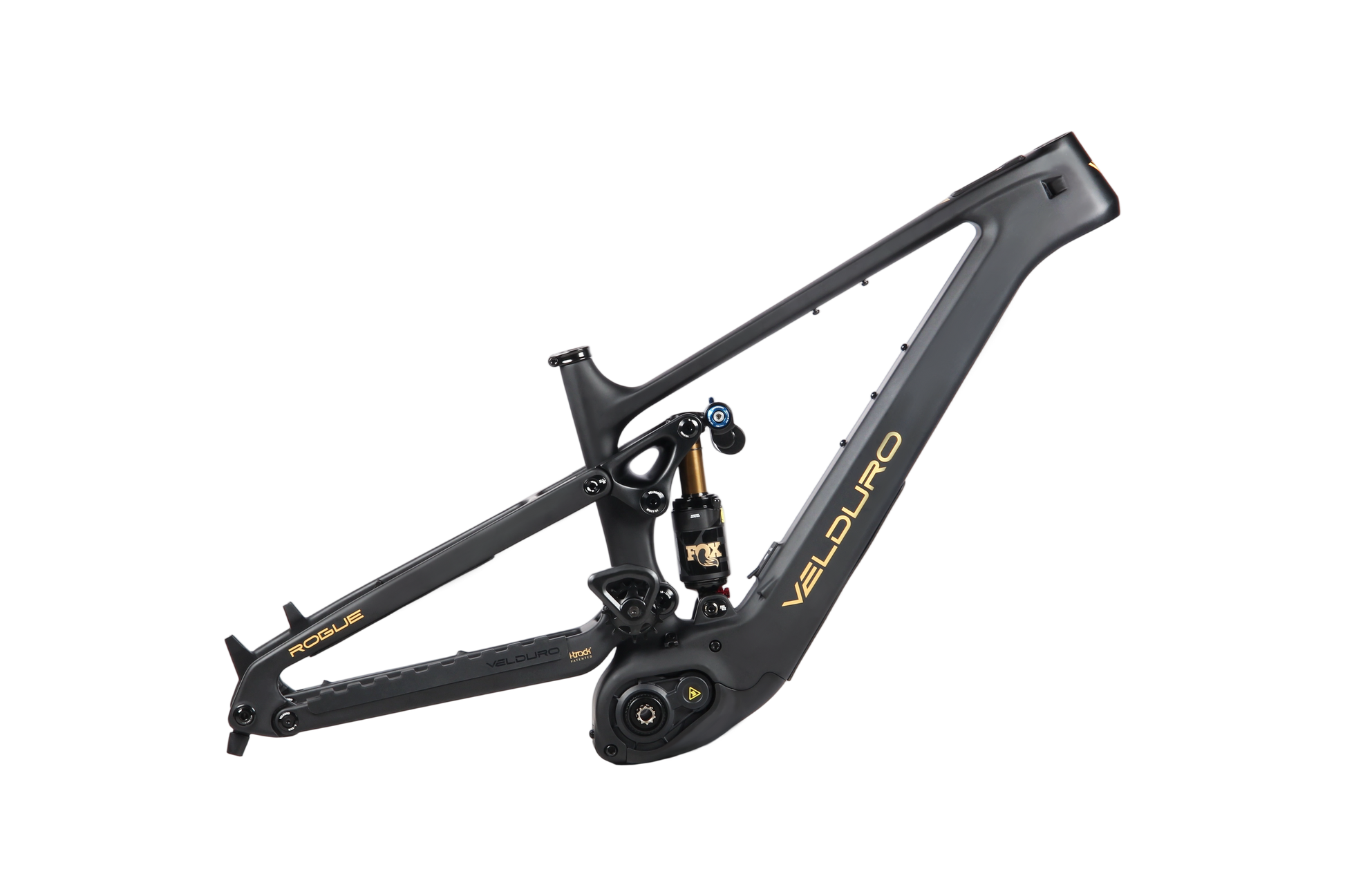

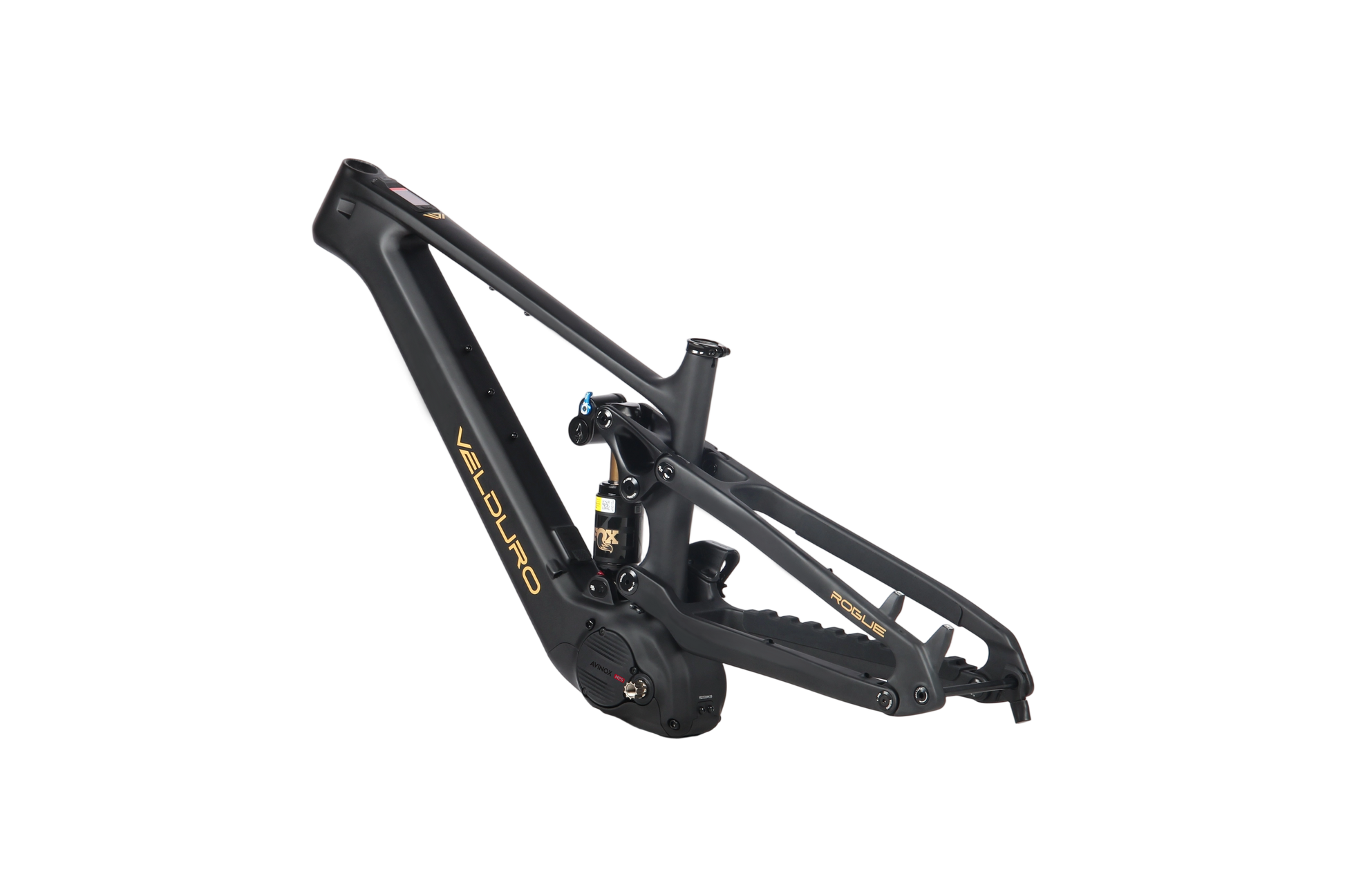

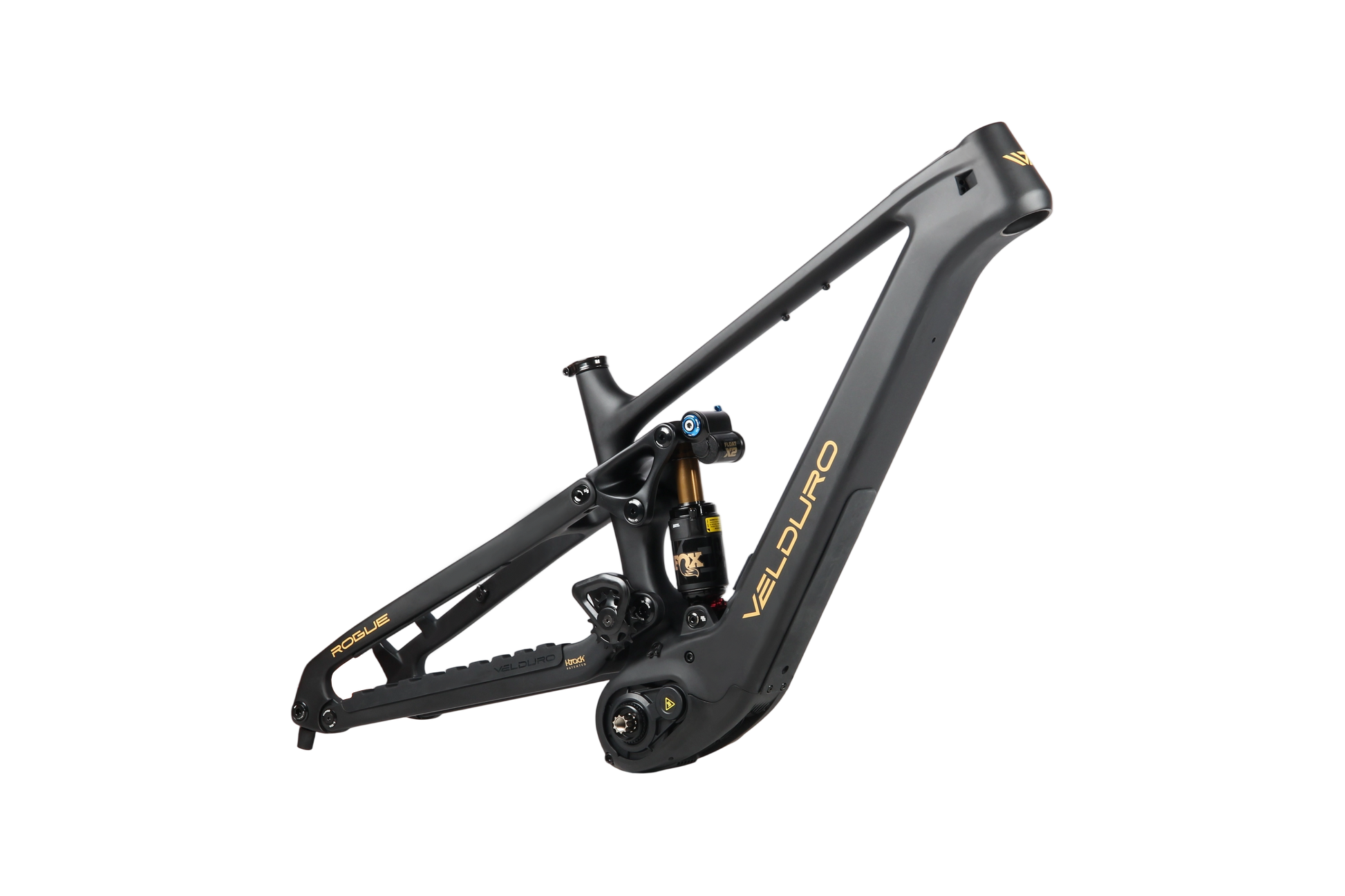

Velduro Rogue Frameset with FOX FLOAT X2 Factory Shock

Create your dream eMTB around one of Australia’s most capable high-performance frames.

The Velduro Rogue combines a full carbon fibre chassis, mid-pivot i-Track suspension and the powerful DJI Avinox drive system to deliver exceptional climbing performance and confidence on steep, technical descents.

This frameset includes a custom-tuned FOX FLOAT X2 Factory shock, giving you a premium suspension platform ready for your choice of fork, drivetrain, brakes, wheels and finishing components.

The adjustable frame can be configured with either full 29-inch wheels or a mixed 29-inch front and 27.5-inch rear setup. Shock stroke and flip-chip settings allow rear travel to be adjusted from 160mm through to 172mm, depending on your chosen configuration.

Power comes from the compact DJI Avinox M2S drive unit, producing up to 130Nm of torque and 150Nm in Boost mode. The integrated 800Wh battery provides the capacity for long climbs, bigger trail days and more descending.

Whether you are transferring parts from another bike or creating a completely custom build, the Rogue provides a serious foundation for riders who want powerful assistance without compromising enduro performance.

Key Features

• Full carbon fibre enduro eMTB frame
• Custom-tuned FOX FLOAT X2 Factory rear shock
• Mid-pivot i-Track suspension system
• Adjustable rear travel from 160mm to 172mm
• Compatible with full 29-inch or mixed-wheel setups
• Adjustable geometry and suspension progression
• DJI Avinox M2S drive unit
• Up to 130Nm of torque
• 150Nm Boost mode
• Integrated DJI Avinox 800Wh battery
• DJI Avinox two-inch display
• Left and right wireless controllers
• Oversized frame bearings
• UDH derailleur hanger
• Boost 12 x 148mm rear axle spacing
• Available in Small, Medium, Large and Extra Large

Included With the Frameset

• Velduro Rogue carbon fibre frame
• Custom-tuned FOX FLOAT X2 Factory shock
• DJI Avinox M2S motor
• DJI Avinox 800Wh battery
• DJI Avinox display
• Left and right wireless controllers
• DJI Avinox 4A charger
• Avinox 155mm cranks
• Velduro 34T steel chainring
• FSA headset
• Rear axle
• UDH derailleur hanger
• Seatpost clamp
• Shock mounting hardware
• Cable guides and frame hardware
• Speed sensor, cables and sensor ring

Wheel and Travel Options

29-inch rear wheel

• 167mm travel with a 65mm shock stroke and standard flip chip
• 172mm travel with a 65mm shock stroke and progression flip chip
• 162mm travel with a 62.5mm shock stroke and standard flip chip
• 167mm travel with a 62.5mm shock stroke and progression flip chip

27.5-inch rear wheel

• 165mm travel with a 65mm shock stroke and standard flip chip
• 170mm travel with a 65mm shock stroke and progression flip chip
• 160mm travel with a 62.5mm shock stroke and standard flip chip
• 165mm travel with a 62.5mm shock stroke and progression flip chip

Build it your way and create a powerful, long-travel eMTB designed for demanding Australian trails.

Please note: This product is a frameset and requires additional components before it can be ridden. Before using the completed bike, check the laws and regulations that apply to e-bikes on roads, trails and road-related areas in your state or territory.
