Wilier Rapida 105 Di2 Carbon Road Bike
Wilier Rapida 105 Di2 Carbon Road Bike
Couldn't load pickup availability
The Wilier Rapida combines unmistakable Italian styling with aerodynamic performance, balanced handling and all-day comfort.

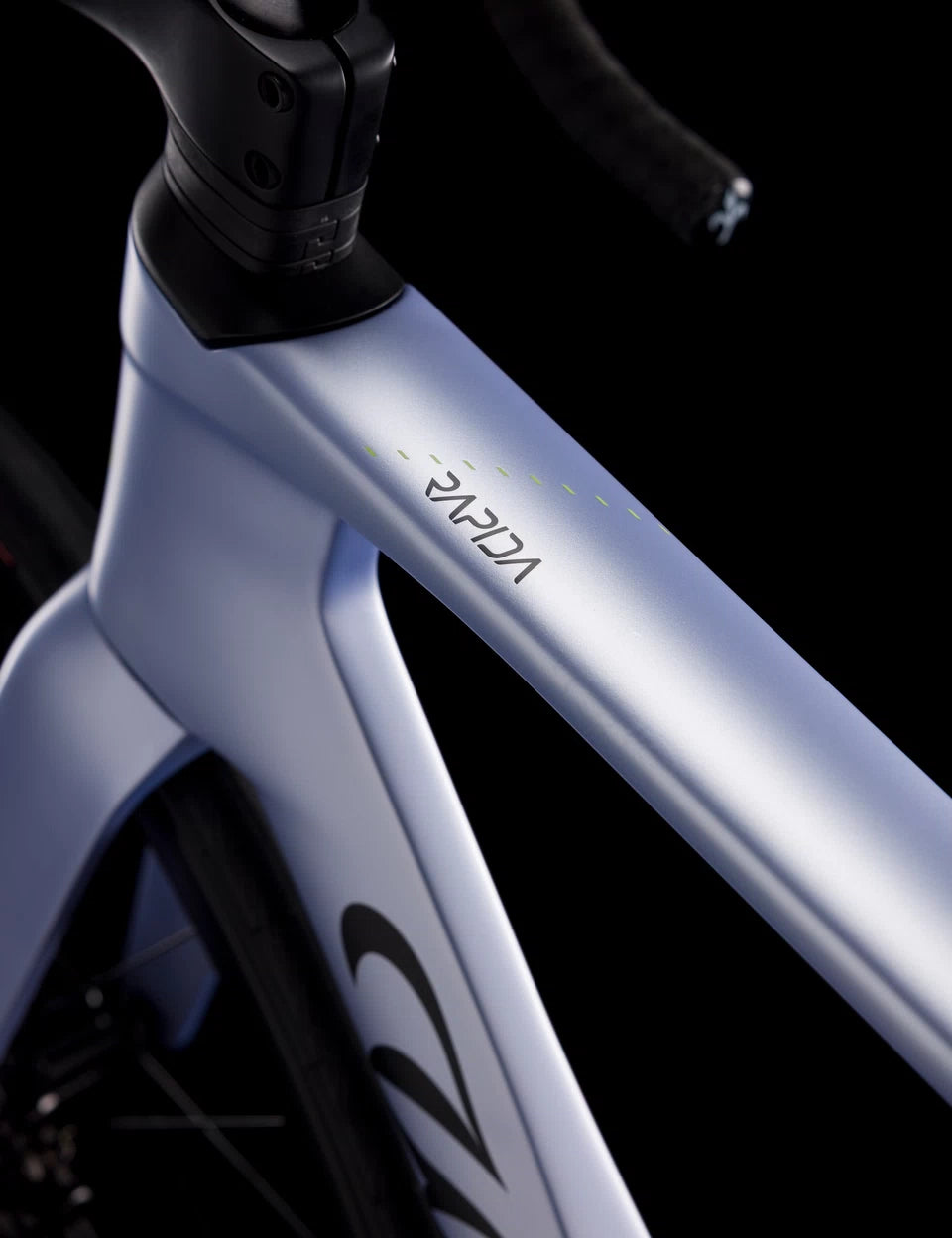

Its NH-MOD carbon monocoque frame uses aerodynamic tube profiles inspired by Wilier’s race-focused road bikes. The geometry is performance-oriented without being excessively aggressive, making the Rapida fast and responsive while remaining comfortable across longer rides.
A fully integrated Wilier Z-Bar carbon cockpit creates a clean front end, while clearance for tyres up to 36mm gives riders the option of running wider tyres for added comfort and confidence on varied road surfaces.
This model is equipped with Shimano 105 Di2 12-speed electronic shifting and Miche Asfalto 45 carbon wheels, delivering precise shifting, dependable braking and an excellent balance of speed, control and value.
Key Features
- NH-MOD carbon monocoque frame and fork
- Shimano 105 Di2 12-speed electronic groupset
- Miche Asfalto 45 carbon wheelset
- Wilier Z-Bar integrated carbon cockpit
- Fully internal cable routing
- 50/34T crankset with an 11–34T cassette
- Vittoria Zaffiro Pro 32mm tyres
- Clearance for tyres up to 36mm
- Prologo Dimension RS saddle
- Claimed weight: 8.2kg ±5%
Available Colours
Three colourways are currently in stock at Venture Cycles:
- G47 Dusk Grey – matte silver/grey

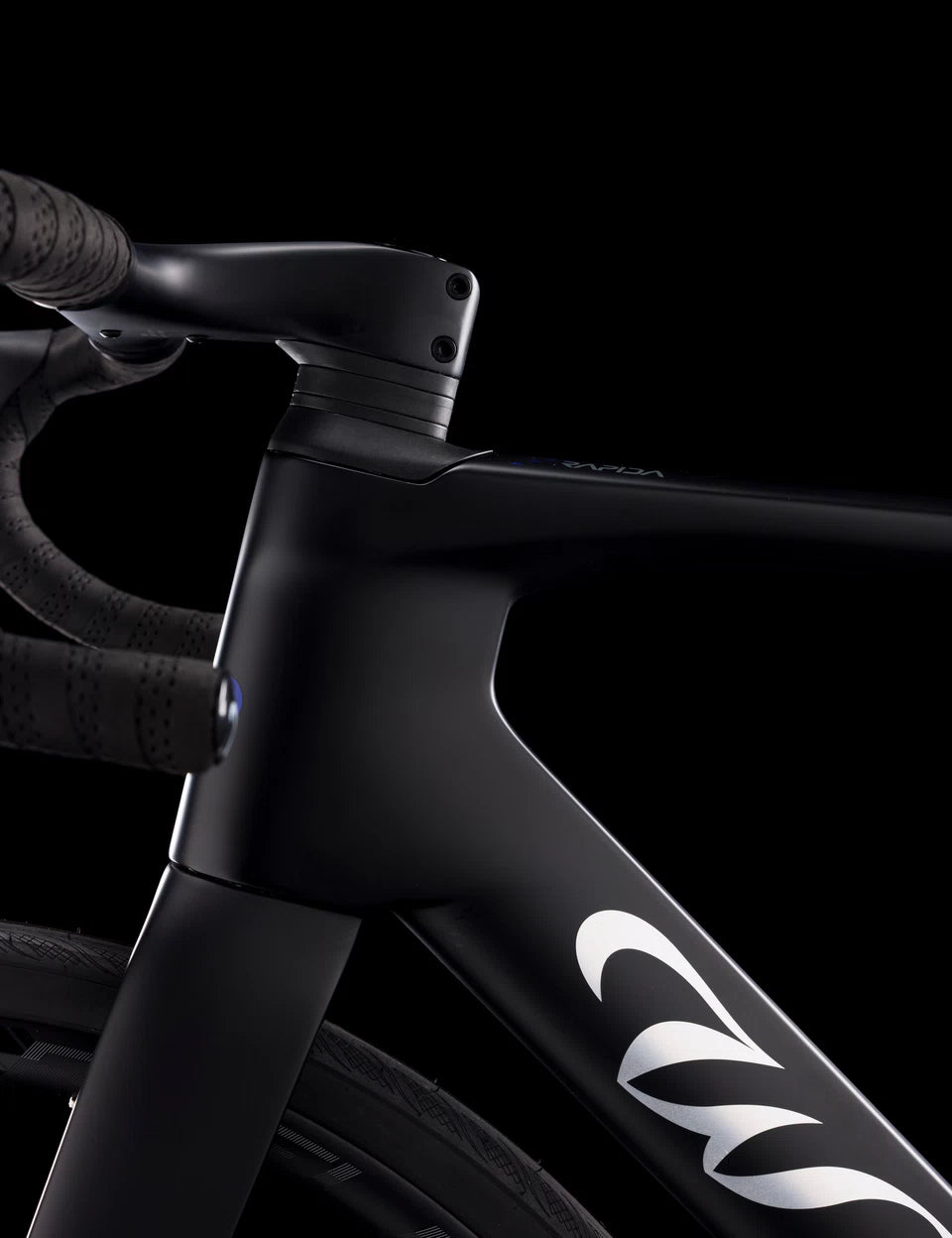

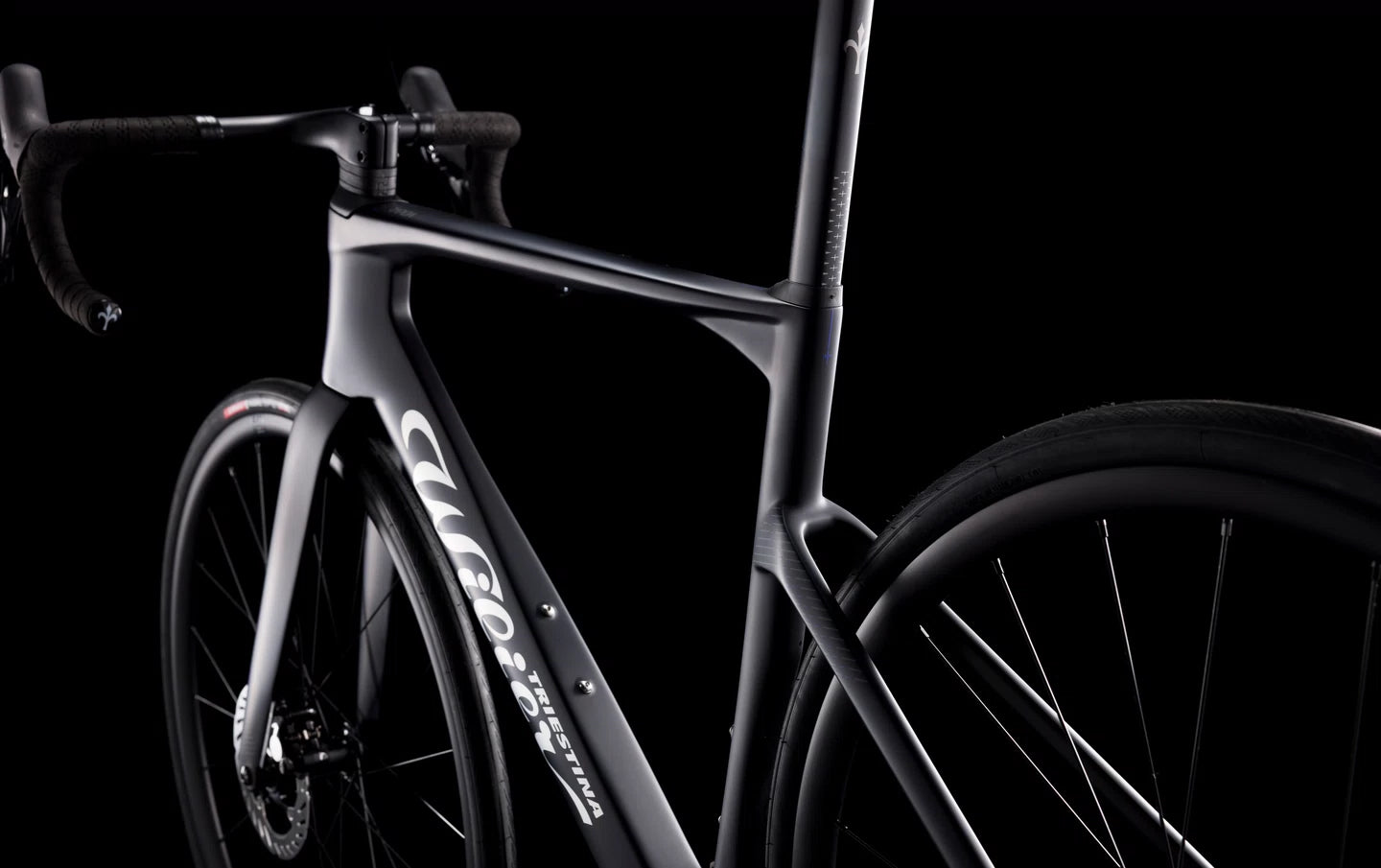

- G49 Lastlight Black – matte black

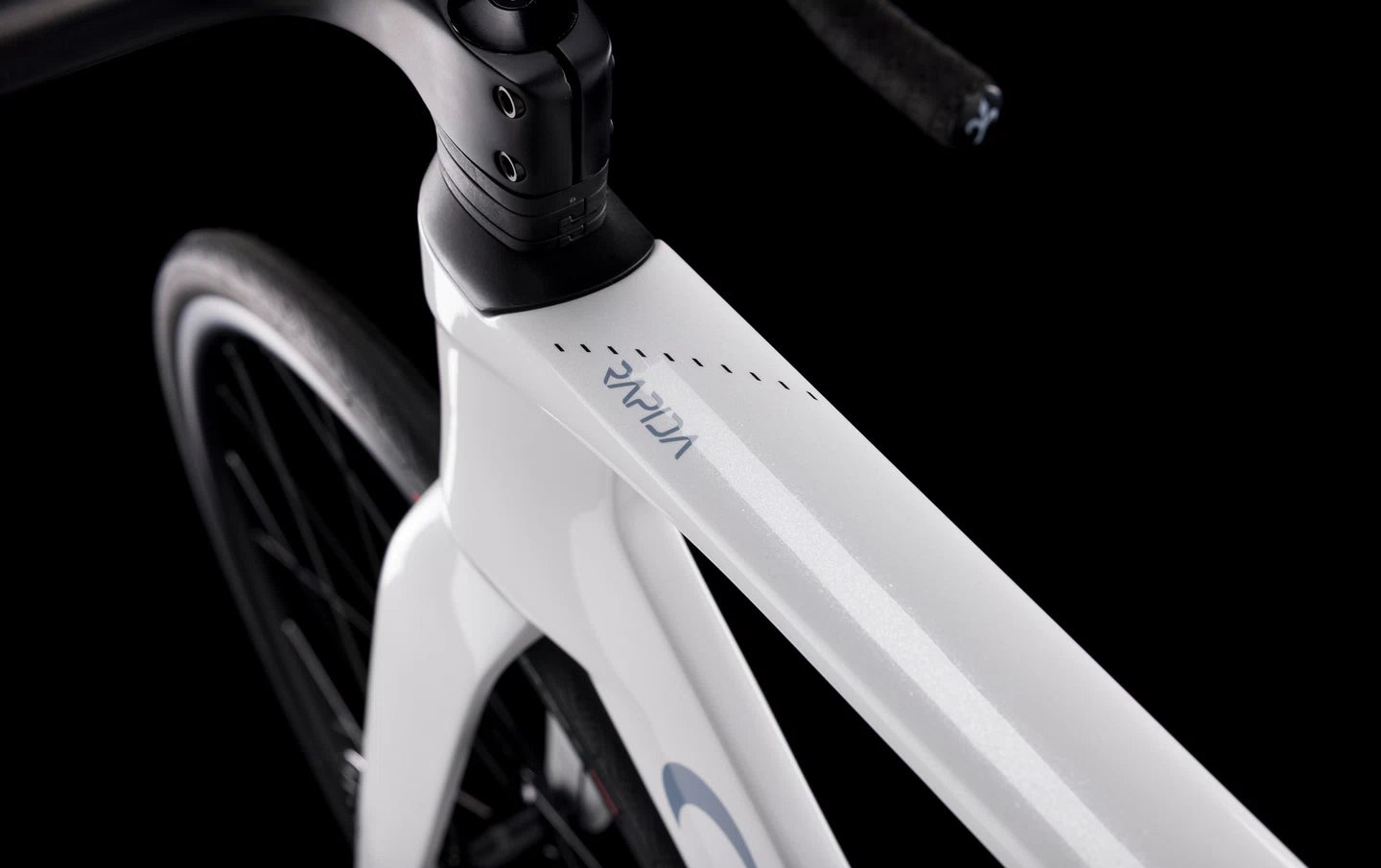

- G46 Weekend White – gloss white
Contact Venture Cycles in Noosa for current size availability or visit us to see the Wilier Rapida in person.
Specifications
| Component | Specification |
|---|---|
| Product code | E7695IA |
| Frame | Rapida carbon monocoque NH-MOD |
| Fork | Rapida carbon monocoque NH-MOD |
| Shifters | Shimano 105 Di2 ST-R7170 |
| Front derailleur | Shimano 105 Di2 FD-R7150 |
| Rear derailleur | Shimano 105 Di2 RD-R7150 |
| Crankset | Shimano 105 FC-R7100, 50/34T |
| Cassette | Shimano 105 CS-R7100-12, 11–34T |
| Chain | Shimano CN-M7100 |
| Brakes | Shimano 105 BR-R7170 hydraulic disc |
| Rotors | Shimano SM-RT70, 160mm front/140mm rear |
| Wheelset | Miche Asfalto 45 carbon |
| Tyres | Vittoria Zaffiro Pro V, 700 × 32c |
| Handlebar | Wilier Z-Bar integrated carbon |
| Handlebar weight | 360g ±5% |
| Headset | Custom Superslim 1¼-inch upper; FSA MR137 1¼-inch lower |
| Bottom bracket | Miche Integrale Pressfit 86.5 × 41mm |
| Seatpost | Wilier Filante SL carbon, custom-made, 15mm offset |
| Saddle | Prologo Dimension RS Steel 145 |
| Axles | Miche Light thru-axles, 12 × 126.5mm front and 12 × 172.5mm rear |
| Claimed weight | 8.2kg ±5% |
Specifications and weights are supplied by Wilier and may be subject to change.

Geometry
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube C–C | 41.2cm | 44.2cm | 47.2cm | 50.2cm | 53.2cm | 56.2cm |
| Effective top tube | 50.9cm | 52.4cm | 54.5cm | 55.6cm | 57.8cm | 58.9cm |
| Frame size | 43cm | 46cm | 49cm | 52cm | 55cm | 58cm |
| Seat tube angle | 75.5° | 75° | 74° | 74° | 73° | 73° |
| Chainstay length | 41cm | 41cm | 41.2cm | 41.2cm | 41.4cm | 41.4cm |
| Head tube length | 10.8cm | 12.5cm | 14.3cm | 16.2cm | 18.3cm | 20.2cm |
| Head tube angle | 70.5° | 71.3° | 72° | 72° | 72° | 72° |
| Reach | 372mm | 378mm | 384.5mm | 390mm | 396mm | 402mm |
| Stack | 520mm | 538mm | 556mm | 574mm |
